UMerL - a tool for executing UML State machines using Erlang

Authors: Lars-Ake Fredlund (lfredlund@fi.upm.es).

UMerL is a tool for executing UML State Machine descriptions. In essence, it is an interpreter for UML State Machines written in the Erlang programming language. Due to the clean design of the interpreter, it is possible to either execute state machine, or to verify them using a model checker (e.g., McErlang).

UMerL currently does not have support for simulating UML state machines which are written in UML graphical syntax. An interface from XML-based XMI format is being prototyped, but is not yet ready. The consequence is that UML state machines are written in an internal format, which is a mix of Erlang and UML syntax, and the actions of the state machines are expressed as Erlang functions. In the following we document the internal format of the state machines, and provide examples to illustrate how UML behaviour can be encoded in Erlang functions.

Installing UMerL

To install UMerL first Erlang must be installed. If Erlang is not already installed on your operating system consult the Erlang web site for instructions on how to install it. In the following we assume that a Linux-based operating system is used, although UMerL can be installed on e.g. Windows too.

To use UMerL it simply has to be compiled:

$ make

An Example

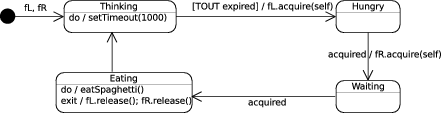

As an example we will consider how work with the Dining Philosopher problem in UMerL. The specification of the philosopher as a state machine is depicted below

and the fork is:

The codification of the above state machines is show below in section...

In the following we assume that the codification of the philosopher and fork state machines are stored in the files philosopher.erl and fork.erl respectively. First, we have to invoke the Erlang compiler on these files (in the following we assume a Linux-based system). It is assumed that the current working directory is the top directory of the UMerL distribution.

$ cd examples                                          # move to examples directory
$ erlc philosopher.erl fork.erl table.erl -pa ../ebin  # recompile the dining example

The file table.erl contains the Erlang code to start the dining philosopher and is shown below:

-module(table).
-compile(export_all).

table(N) ->
  Forks = lists:map (fun (_) -> process:start([{fork,void}]) end, lists:seq(1,N)),
  lists:foreach
    (fun ({L,R}) -> process:start([{philosopher,{L,R}}]) end, adjacent(Forks)).

adjacent([]) -> [];
adjacent([X|Xs]) -> lists:zip([X] ++ Xs, Xs ++ [X]).

The main function in table(N) which provided a natural number N, creates a table with N philosophers and N forks.

We let each state machine run in their own machine container. In the simulator/verifier, each container is mapped to a unique Erlang process, and we will hence use the terminology container/process interchangeably.

Such a container, with machines, is created using the function process:start(ListOfMachines) (further documentation available in the Modules section to the left). In the call process:start([{philosopher,{L,R}}]), for example, a new process is started with one associated state machine. The machine is implemented by the Erlang module philosopher, and the machine receives as initial arguments (fL and fR in the philosopher state machine above) the addresses (Erlang pids) to its left and right fork processes.

We can now run, e.g., simulate, a table with two philosophers and forks:

$ erl -pa ../ebin/
Erlang R16B02 (erts-5.10.3) [source] [64-bit] [smp:12:12] [async-threads:10] [hipe] [kernel-poll:false]

Eshell V5.10.3  (abort with ^G)
1> table:table(2).
ok
2>

As we did not include any printouts in the philosophers and forks nothing was printed. We can suspect that there is a deadlock in the system, and one way to prove it is to use the Erlang model checker to find the deadlock.

Using McErlang to debug the Dining Philosopher problem

In the following we assume that McErlang is already installed, and that the current working directory is examples.

First we have to recompile the sources for the Dining Philosopher problem using McErlang:

$ mkdir mcerlang_ebin             # a temporary working dir
$ mcerl_compiler -pa ../ebin -output_dir mcerlang_ebin -sources ../src/*.erl fork.erl philosopher.erl table.erl

Note that above we in fact also recompiled the sources for the whole UMerL interpreter; thus the UMerL interpreter will run under the control of the McErlang model checker.

We can now run the Dining Philosopher example in McErlang:

$ mcerl -pa mcerlang_ebin
Erlang R16B02 (erts-5.10.3) [source] [64-bit] [smp:12:12] [async-threads:10] [hipe] [kernel-poll:false]

Eshell V5.10.3  (abort with ^G)

1> rr(mce:find_mce_opts()).
[mce_opts]

2> mce:start(#mce_opts{program=fun () -> table:table(2) end}).
Starting McErlang model checker version
"McErlang 2.1.1 [revision ++ compiled on lun nov 4 11:45:04 CET 2013]" ...

...
*** Run ending. 276 states explored, stored states 157.

...
ok
3> mce:start(#mce_opts{program=fun () -> table:table(2) end,monitor=mce_mon_deadlock}).
Starting McErlang model checker version
"McErlang 2.1.1 [revision ++ compiled on lun nov 4 11:45:04 CET 2013]" ...

...
*** Monitor failed
monitor error:
deadlock
Table has 11 states and 11 transitions.

First in line 1> we obtain the definition of the #mce_opts records which is used to specify what McErlang should attempt to verify (see the McErlang manual for further explanations). In line 2> then we check that the Dining Philosopher problem, with two philosophers, does not raise any runtime exception (checking for the absence of runtime exceptions is the default action of McErlang), which it apparently doesn't. Then, in line 3> we check whether there are any deadlocks by specifying the monitor (correctness property) mce_mon_deadlock, and indeed, McErlang quickly finds an error. We could then proceed to investigate the error using e.g. the McErlang debugger, showing the trace that leads to the error, but that exercise is left to the reader.

UML State Machine internal format description

An UML State Machine running under the UMerL interpreter has access to two types of storage: global variables that are shared with other machines in the same container, and the state data which is associated to a UML machine state.

An UML state machine running under UMerL can interact with other state machines by issuing trigger events (sending messages). Such trigger events are always asynchronous. In addition, communication between machines residing in the same machine container is possible using shared variables.

The internal format for UML State Machines represents a machine as an Erlang module in a special format. Such a "machine module" must include the Erlang include file umerl.hrl.

Initialising state machines

The module should define a function init(Arg) which given an argument, returns a tuple consisting of the first state name of the state machines, and the associated state data. As an example, the init function for a fork is defined as show below:

init(_) -> {idle, void}.

The fork machine begins its execution in state idle, and since it does not use the local machine state, we can simply initialize the state to any value (here, arbitrarily, the Erlang atom void).

Defining states

A state machine module defines a new state using a function which returns an Erlang record of type #uml_state. Such a record has the following keys:

name - the name of the state
transitions - a list of transitions with the state as source
entry - entry action (if any)
exit - exit action (if any)
do - do action (if any)
defer - either void (defer no events), all (defer all events), or a function for selecting which events to defer
type - an indication to UMerL whether the transitions of the state has guards that only check global variables (read), only concern triggered events (receive) or both (receive_read).

Defining transitions

A transition is a record #transition with the following keys:

is_internal - a boolean describing whether a transition that has the same source and target states is considered to leave the state or not (i.e., whether the execution of the state will trigger entry and exit transitions).
guard - a function which implements the transition guard, and return transition action (see explanation below).
next_state - identifies the target state of the transition.
type - an indication to UMerL whether the guard of the transition only checks global variables (read), only concern triggered events (receive) or both (receive_read).

Guards and Actions

A guard function receives three parameters, the trigger (or the atom void if there was no trigger), a context parameter, and the data state of the machine. The guard function should return either the boolean value false, signifying that the evaluation of the guard failed, or {true, ActionFun} where ActionFun is a function implementing the transition action. Such an "action function" receives a single parameter, which is the data state of the machine. An "action function" should return a single value which corresponds to the new data state of the state machine (the name of the state is provided by the next_state value). A guard function read state container global values using a call to uml:read(Context,VariableName), and "action functions" may use the entire API available in the uml module to issue trigger events (i.e., send messages), read and write global variables, etc.

Exit and Entry actions

Exit and entry actions are defined by a function, which is provided with two arguments, a context, and the data state. These functions return a new data state, and may call functions in the uml module.

Do action

A function implementing a do action receives only the context parameter (since a do action is executed concurrently with normal internal transitions the state machine does not have a well-defined data state to pass to the do action). The do function may call the functions provided by the uml module.

Defer functions

To control which trigger events are deferred, it is possible to specify a function which, provided a trigger, the data state, and the context, returns true if the event should be deferred, and false if the event should not be deferred in the current state.

Specifying the Dining Philosopher problem in the internal format

As an example we will provide the encoding of the philosopher and fork state machines, in the internal format, below. A fork state machine is implemented by the fork module below:

-module(fork).

-include("../src/records.hrl").
-include("../src/umerl.hrl").

-compile(export_all).

init(_Arg) ->
  {idle, void}.

state(idle) ->
  #uml_state
    {name=idle,
     type='receive',
     transitions=
       [
	#transition
	{type='receive',
	 next_state=beingUsed,
	 guard=
	   fun ({acquire,From},_Process,_State) ->
	       {true,
		fun (_State) ->
		    uml:signal(From,acquired),
		    From
		end};
	       (_,_,_) -> false
	   end}
       ]};

state(beingUsed) ->
  #uml_state
    {name=beingUsed,
     type='receive',
     defer=fun ({acquire,_},_,_) -> true; (_,_,_) -> false end,
     transitions=
       [
	#transition
	{type='receive',
	 next_state=idle,
	 guard=
	   fun (release,_Process,_) ->
	       {true,
		fun (_State) ->
		    void
		end};
	       (_,_,_) -> false
	   end}
       ]}.

The fork state machines has two states, idle and beingUsed, with idle being the initial state. The idle state defines a single transition to the state beingUsed triggered by the reception of a {acquire,From} event, where From is the identity of the machine container issuing the event. The transition is triggered always, and performs the action to send a reply event using the function call uml:signal(From,acquired), and saving the From parameter in the data state (for illustration purposes only, since it is not used later on). The beingUsed state has a single transition to the state idle, which is triggered upon the reception of a release trigger event.

A philosopher state machine is implemented by the philosopher module below:

-module(philosopher).

-include("../src/records.hrl").
-include("../src/umerl.hrl").

-compile(export_all).

init(Arg) ->
  {thinking, Arg}.

state(thinking) ->
  #uml_state
    {name=thinking,
     type='read',
     defer='none',
     transitions=
       [
	#transition
	{type='read',
	 next_state=hungry,
	 guard=
	   fun (_Process,_) ->
	       {true,
		fun (State={FL,FR}) ->
		    uml:signal(FL,{acquire,self()}),
		    State
		end}
	   end}
       ]};

state(hungry) ->
  #uml_state
    {name=hungry,
     type='receive',
     defer='none',
     transitions=
       [
	#transition
	{type='receive',
	 next_state=waiting,
	 guard=
	   fun (acquired,_Process,_State) ->
	       {true,
		fun (State={FL,FR}) ->
		    uml:signal(FR,{acquire,self()}),
		    State
		end};
	       (_,_,_) -> false
	   end}
       ]};

state(waiting) ->
  #uml_state
    {name=waiting,
     type='receive',
     defer='none',
     transitions=
       [
	#transition
	{type='receive',
	 next_state=eating,
	 guard=
	   fun (acquired,_Process,_State) ->
	       {true,
		fun (State) ->
		    State
		end};
	       (_,_,_) -> false
	   end}
       ]};

state(eating) ->
  #uml_state
    {name=eating,
     type='read',
     defer='none',
     transitions=
       [
	#transition
	{type='read',
	 next_state=thinking,
	 guard=
	   fun (_Process,_State) ->
	       {true,
		fun (State) ->
		    State
		end}
	   end}
       ],
    do=
       fun (_Process) ->
	   io:format("eating spaghetti...~n")
       end,
     exit=
       fun (_Process,State={FR,FL}) ->
	   uml:signal(FR,release),
	   uml:signal(FL,release),
	   State
       end
    }.

The philosopher module is similar to the fork one. To illustrate the coding of do actions we let the state eating print out the message ''eating spaghetti...'' when a philosopher has acquired both forks.
